FH Harmonic Generators of Femtosecond Lasers

FH100 is a new series of femtosecond laser harmonic generators. Generators of this series have a universal platform and can be adapted to your tasks and the equipment you use.

Possibility of simultaneous operation at all harmonics
Output of harmonics into one or more parallel optical channels
Easy wavelength selection

Send a request

/ Description

/ Specifications

/ Applications

The FH100 series harmonic generators are designed to enhance the capabilities of femtosecond Yb:KYW lasers, such as FX200.

Depending on the configuration, FH100 harmonic generator converts 1030nm radiation into Second (515 nm), Third (343 nm) and Fourth (258 nm) harmonics.

Our website presents several standard models that meet the needs of most users. However, the FH100 series harmonic generators can be easily modified to suit your needs, for example, to organize the simultaneous output of harmonic radiation into parallel channels or into one channel.

Model	FH120	FH130	FH140
Wavelength, nm	≈ 515	≈ 343	≈ 258
Conversion efficiency ¹⁾, %	≥ 35%	≥ 5%	≥ 1%
Polarization	horizontal²⁾	vertical²⁾	vertical²⁾
Dimensions (L×W×H), mm	385 × 195 × 150

* Specifications are subject to change without notice
1) With respect to 1030 nm power;
2) Orthogonal polarization is available upon request.

Typical output parameters of the FH100 series harmonic generator with simultaneous output of all harmonics

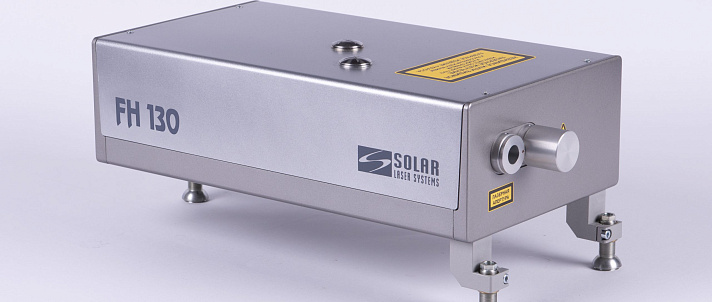

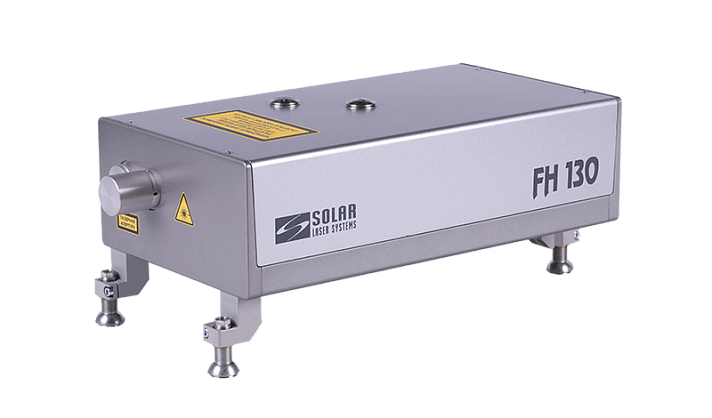

Harmonic Generator Model	FH130
Input Laser	Femtosecond Laser Model FX200-5 (5W, 150fs)
Wavelength, nm — 1030 nm — 515 nm — 343nm	≥1,5 ≥0,9 ≥0,7

Harmonic Generator Model

FH130

Input Laser

Femtosecond Laser Model FX200-5 (5W, 150fs)

Wavelength, nm

— 1030 nm

— 515 nm

— 343nm

≥1,5

≥0,9

≥0,7

Harmonic Generator Model	FH130
Input Laser	Femtosecond Laser Model FX200-8 (8W, 150fs)
Wavelength, nm — 1030 nm — 515 nm — 343nm	≥3 ≥1,5 ≥1,0
