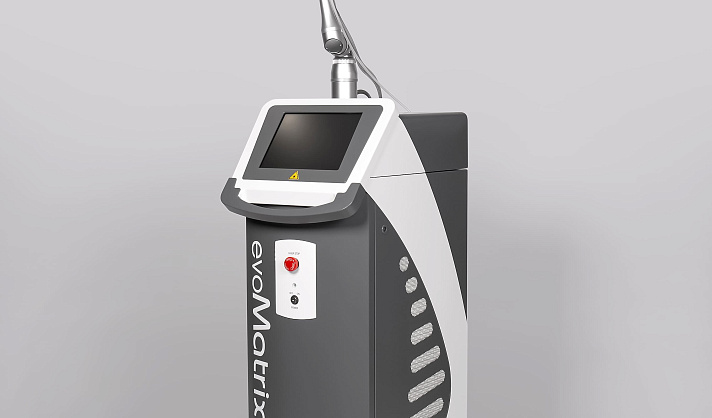

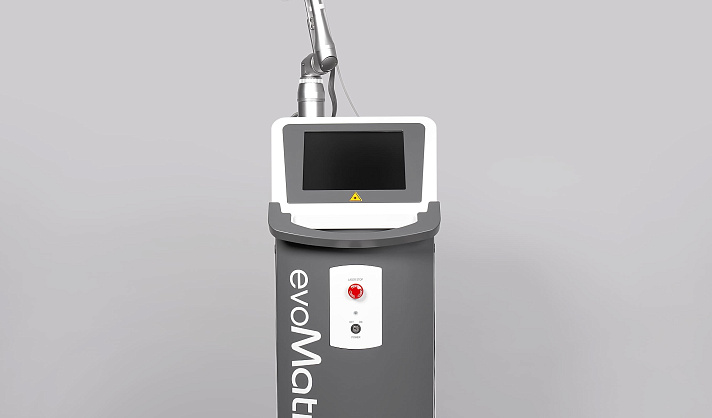

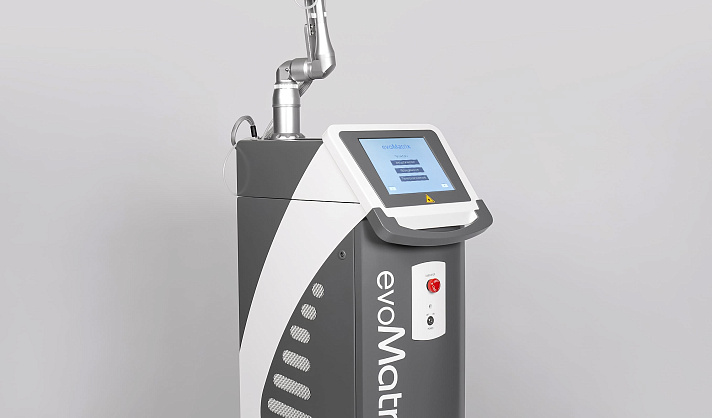

EVOMATRIX: CO2 (carbon dioxide) fractional laser

EVOMATRIX stands as a versatile device designed to efficiently implement a wide range of modern aesthetic medicine technologies, primarily centered around the utilization of CO2 lasers. Featuring cutting-edge technology within an ergonomic design, EVOMATRIX offers remote monitoring and diagnostics of its performance. The absence of consumables enhances its reliability, making it an indispensable tool for medical centers and gynecological clinics.

Reliable RF pipe
Beam diameter less than 100 μm
Maximum scanning area 20×20 mm
Ultra lightweight scanner

Send a request

/ Description

/ Specifications

/ Options & Accessories

/ Applications

Fast patient rehabilitation time

The technologies employed in EVOMATRIX guarantee a beam size of less than 100 μm in the treatment area. This feature minimizes the trauma associated with laser radiation, ensuring the quickest recovery time post-procedure.

Precision of impact

Due to the laser beam’s small diameter and high quality, the EVOMATRIX enhances precision of impact. Each coagulation hole maintains an optimal size, consistent regular shape, and uniform depth throughout the entire scanning area. This guarantees even processing and eliminates the risk of uncontrolled deviations from processing protocols.

Patient Safety

Given that CO2 laser procedures involve controlled skin alterations, it’s crucial to prioritize patient safety and comfort by precisely maintaining the selected parameters of laser radiation throughout the treatment. To achieve this, the EVOMATRIX is equipped with an intelligent system for automatic control of laser energy, ensuring precise exposure and patient safety during procedures by preventing accidental energy fluctuations.

Ease of Use

The scanner, designed to be lightweight and ergonomic, maximizes the comfort of the doctor’s work, reducing physical fatigue even during extended procedures.

Individual settings

The doctor can select the appropriate power levels, desired filling density, and the number of overlays based on the patient’s skin condition, the performed procedure, and the shape of the treated area. Users also have the choice of three types of scans and four possible scan zone shapes. These optimization options provide EVOMATRIX with high flexibility in selecting treatment protocols, ensuring maximum treatment efficiency.

A modern and intuitive interface allows you to change the parameters of the procedure within seconds.

Reducing service expenses

Utilizing a dependable RF tube in the design ensures the device’s power characteristics remain constant over many years. The machine eliminates the need for an extra water cooling system, and the majority of its components require no maintenance. The technologies incorporated in the EVOMATRIX extend the service interval, thereby lowering the overall ownership costs of the device.

Active medium		RF tube
Wavelength		10,6 μm
Beam quality		TEMoo
Max output power		30 W
Max pulse energy		300 mJ
Pulse repetition rate		0,2 ÷ 1000 Hz
Laser pulse duration		0,1-10 ms
Beam diameter		Less than 100 μm
Modes of operation		fractional, pulse, superpulse, continuous
Types of procedures		surgical, fractional, gynecological
Fractional mode	Max spot density	10 000 spots/cm2
	Distance between spots	0,1 ÷ 2,6 mm
	Multi-dots mode	от 1 до 20 pulses, + ∞
	Max scanning area	20 mm х 20 mm
	Scanning mode	random, successive, area-based
Scanning shapes		square/rectangle, round/ellipse, triangle, line

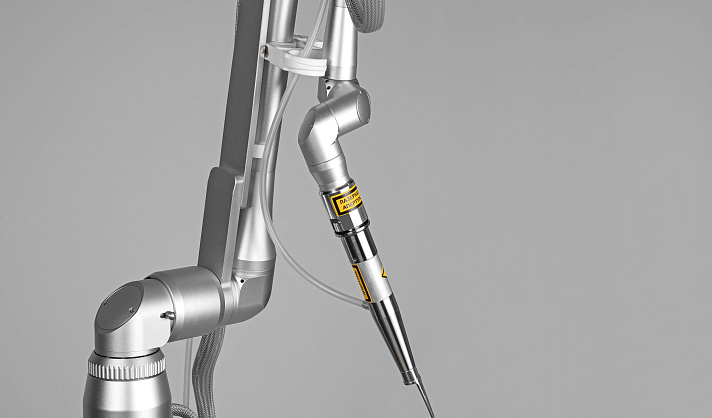

Beam delivery system		7-mirror articulated spring arm, 360⁰rotation capability

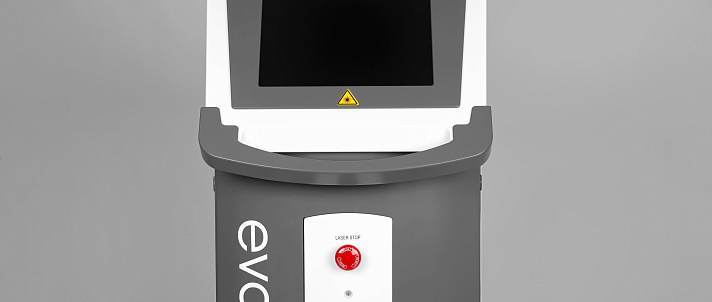

Control panel		10” diagonal colored touchscreen display
Cooling system		air-to-air
Electrical requirements		230V±10%; 50/60Hz ; 16А; single phase
Dimensions		1160 х 500 х 565 mm
Weight		75 kg

EVOMATRIX comes with dedicated attachments designed to cover a comprehensive spectrum of procedures, including surgical, fractional, and gynecological applications.

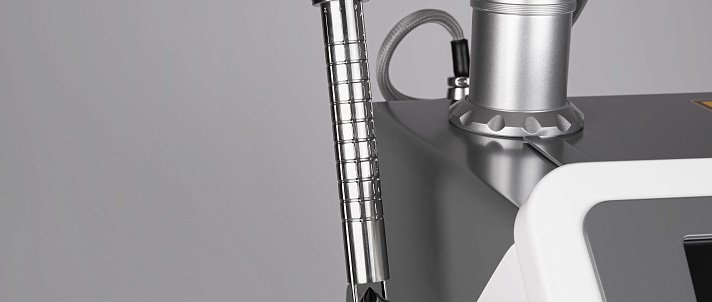

The gynecological applicator is an innovative development of our company’s technical specialists, which has the following features:

the ability to blow out the inner cavity of the applicator to remove biological products from optical surfaces, which reduces the traumatic impact on the optics and increases its service life;
selection of the applicator position along the angular and linear guides, which does not allow skipping the treatment areas, as well as excludes the repeated application of laser radiation to the same area;
the applicator can be used in two modes: with a limiter only or with a limiter and a guide basket-expander – freedom of choice for the doctor;
use of replaceable mirrors in different configurations (900 and 3600): when changing procedures, there is no need to install a new gynecological applicator – just replace the mirror.

Non-contact Air Skin Cooler

Non-contact air skin coolers such as Cryo 6 can be an alternative to injection anesthesia during fractional procedures or for vaporizing small neoplasms (e.g., papillomas, etc.). These coolers are effective in minimizing pain and eliminating allergic reactions.

Removal of unwanted skin neoplasms (nevi, warts, papillomas, keratomas, etc.)
Removal of deep and fine wrinkles, including the periorbital zone (“crow’s feet”)
Removal/correction of scars and scars after injuries and surgeries
Correction of stretch marks (hormonal, post-pregnancy or after weight loss)
Skin restoration of the scars and craters after acne (post-acne), elimination of enlarged pores
Rejuvenation of the skin, improvement of texture and relief (including eyelids, neck, décolleté and hands)
Elimination of pigment spots
Vulvo-vaginal procedures
Treatment of stress enuresis
