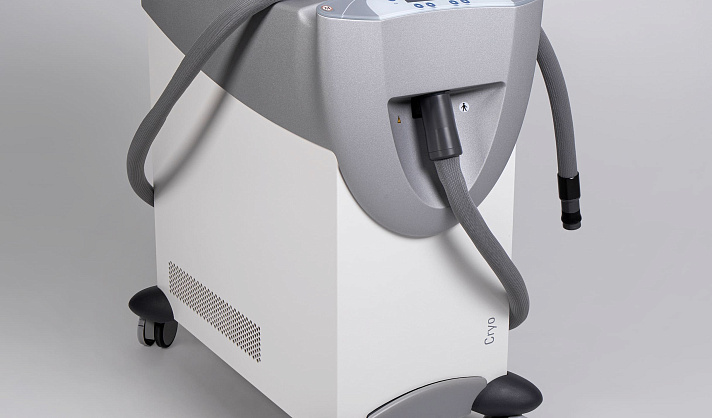

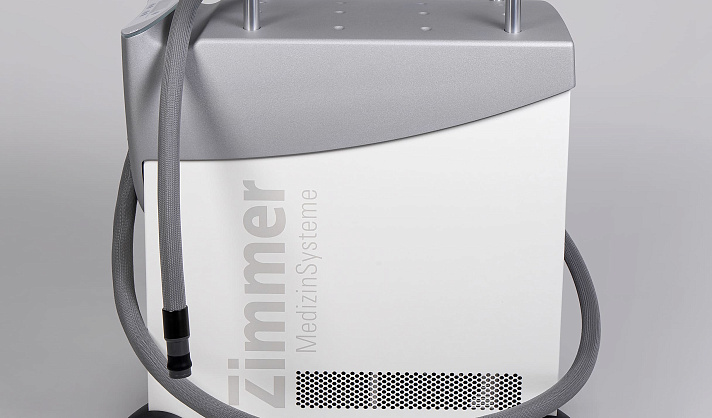

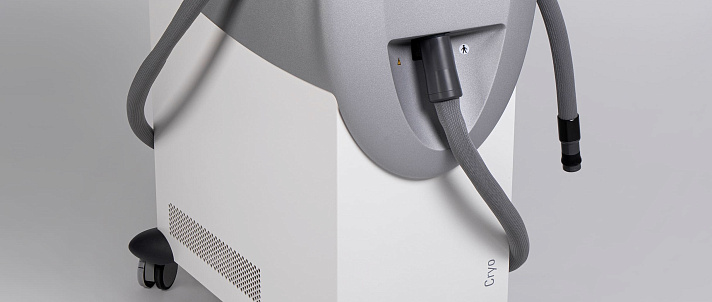

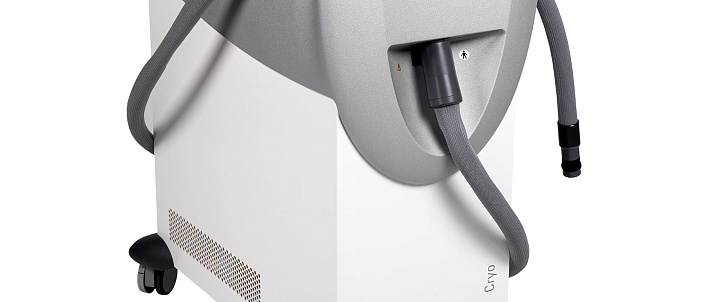

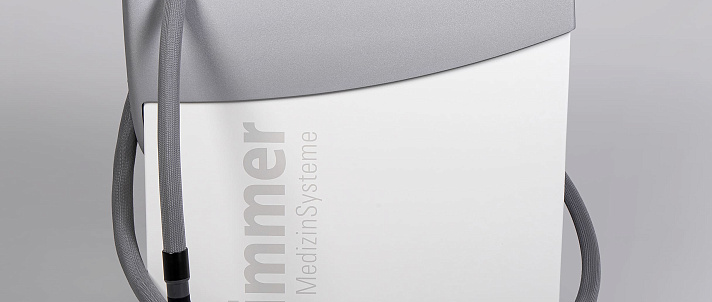

CRYO 6: cryotherapy and skin cooling system

Cryo 6 is a new generation of cryotherapy systems from the German company Zimmer MedizinSystems, which use a cold jet of air to effectively relieve pain, reduce tumors and restore muscle tone after injuries.



Cryo 6 DERMA goes beyond by providing a temporary anesthetic effect, reducing the risk of pain and thermal damage during laser and dermatological treatments. Unlike other cooling methods that rely on contact, Cryo 6 DERMA cools the epidermis before, during, and after laser exposure, working seamlessly in conjunction with the laser beam.

  • 9 levels of airflow power control available
  • 6 programs with adjustable parameters
  • Built-in timer adjustable from 00:00 to 99:59 minutes
  • Adapted for use with medical lasers
  • No need for consumables
Send a request
/ Description
/ Specifications
/ Applications
The Zimmer MedizinSystems Cryo 6 DERMA device impacts the patient’s body with a stream of cold air, allowing for the rapid alleviation of pain, reduction of tissue swelling, and toning of muscles. It ensures precise localized exposure and maintains constant cooling parameters tailored to each individual patient.



The directed flow of cold air at a sufficiently high power has a localized effect on the skin’s surface, yielding the desired therapeutic outcome. In contrast to other cooling methods like ice bags or cryospray, which solely provide contact-based effects, the Cryo 6 DERMA reduces local skin temperature much more rapidly. The cold portions are carefully measured and remain constant until the end of the procedure. The primary advantage of this device lies in its almost complete elimination of the risk of burns.



FEATURES & BENEFITS

  • cooling the epidermis and providing an anesthetic effect before, during, and after laser procedures without interfering with the laser beam;
  • no need for consumables or constant maintenance;

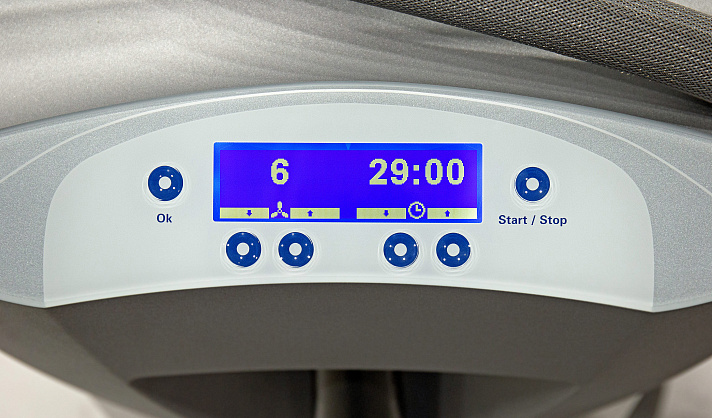

  • large display featuring clear presentation of all procedure parameters;
  • 6 programs with adjustable airflow and treatment time;
  • touch-sensitive glass keyboard for easy program selection;
  • ability to save 3 additional user programs;
  • ensures safety and painlessness during procedures, excluding damage and microtrauma;
  • can affect areas of the body that compromise the integrity of the skin and areas that are inaccessible to other cooling methods;
  • the presence of an air filter to clean the intake air, easily accessible for cleaning;
  • glass table with a maximum load of up to 35 kg to accommodate a laser device, smoke exhauster or accessories;
  • enhanced mobility with four wheels;
  • can be retrofitted with an additional hinge lever (hose holder) for non-contact operation.
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Adjusting the airflow intensity 9 levels
Airflow speed Up to 1000 l/min
Airflow temperature -30°C
Length of the working tube 3 m
Electrical requirements 220-240V / 50Hz
Max power consumption 1 kW
Standby power consumption 260 W
  • Reduction of postoperative swelling and pain
  • Local anesthesia during laser dermatological procedures
