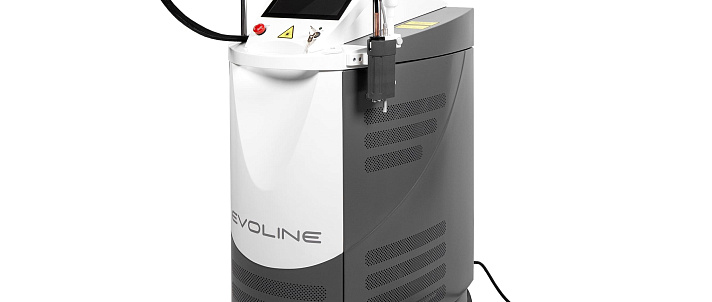

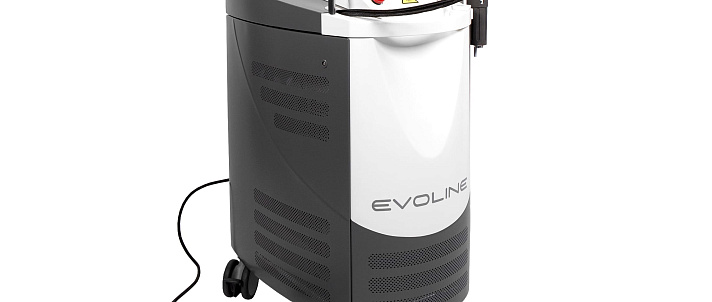

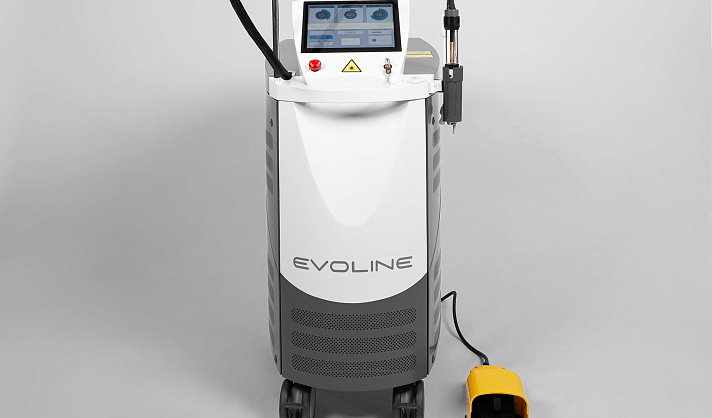

EVOLINE: alexandrite and ND:YAG lasers in one device

EVOLINE integrates two lasers into a single system: neodymium (Nd:YAG) and alexandrite lasers. This distinctive feature empowers users to conduct a wide range of popular laser cosmetic procedures throughout the year, with minimal seasonal constraints.

The cutting-edge technologies incorporated into the EVOLINE design not only unlock unique medical possibilities and ensure patient safety but also significantly extend service intervals, thereby reducing the overall ownership cost of this advanced cosmetology laser.

  • Dual lasers within one device
  • Exceptional efficiency and quality
  • Contemporary and user-friendly design and interface
  • Seamless adjustment of spot diameter, ranging from 2 to 24 mm using a single handpiece
  • Competitive and appealing pricing
Send a request
/ Description
/ Specifications
/ Applications

High efficiency with minimal pain


An innovative algorithm for pulse generation in our laser technology ensures minimal discomfort for patients undergoing procedures. Leveraging the unique response of biological tissues to laser radiation, this technology enhances the selectivity of laser exposure, minimizing patient pain.


Safety Assurance


Our AutoPower automatic laser energy control system guarantees precise maintenance of preset parameters, ensuring maximum patient safety throughout the entire procedure.


User-Friendly Operation

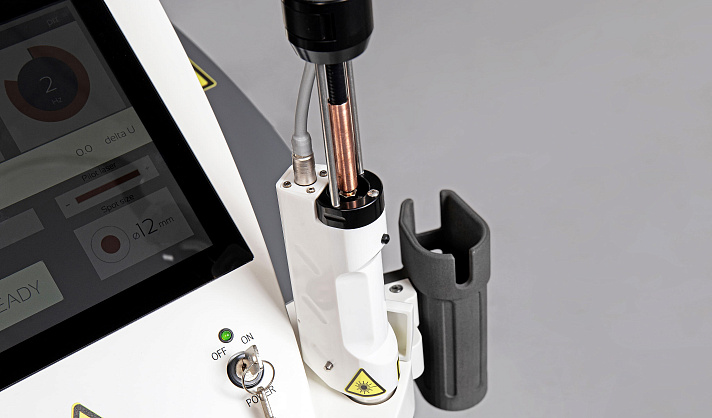

Our proprietary spot size selection technology allows seamless adjustment of the spot diameter from 2 mm to 24 mm without the need to change handpieces. The ergonomic handpiece, complete with an integrated radiation activation button, not only enhances the doctor’s comfort but also minimizes physical fatigue, even during extended procedures.


Customizable Flexibility


EVOLINE doesn’t just offer wavelength options; it allows fine-tuning of treatment protocols based on the procedure, patient phototype, and individual characteristics. This flexibility ensures optimal results year-round, unaffected by seasonal constraints.


Cost-Effective Maintenance


The integration of original technical solutions and components from leading global manufacturers ensures low operating costs and a swift return on investment, minimizing overall service expenses.

Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Active medium Nd:YAG Alexandrite
Wavelength 1064 nm 755 nm
Laser pulse duration from 0.3 to 200 ms
Max operating pulse energy 100 J 45 J
Spot diameter from 2 to 24 mm
Pulse repetition rate 0.5 to 10 Hz
Beam delivery system ⌀ 1500μm optical fiber with a length of 3 m
Aiming beam adjustable red/green laser diode
Control panel 10″ diagonal colored touchscreen display
Cooling system water-to-air
Electrical requirements 230V±10%; 50/60Hz; 16A; single phase
Dimensions 700 x 480 x 1030 mm
Weight 100 kg
  • Unwanted hair removal
  • Non-invasive removal of vascular lesions
  • Removal of pigment spots
  • Non-invasive skin rejuvenation
  • Acne treatment and prevention
  • Onychomycosis treatment
  • Hemangioma removal
