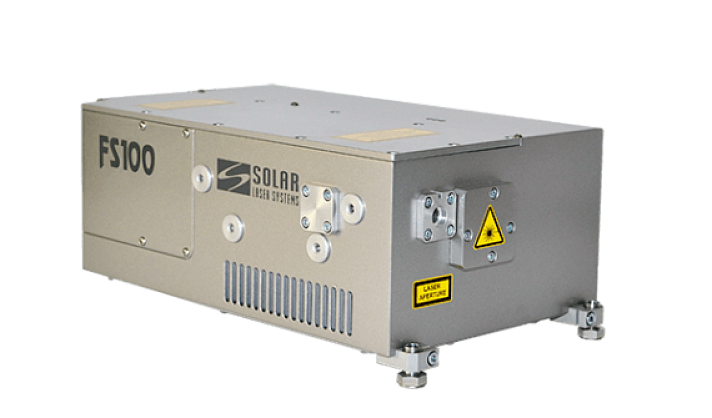

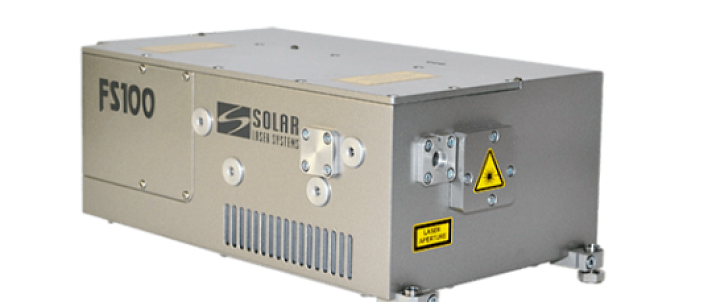

FS100 Pulse Selector

FS100 is a femtosecond/picosecond laser pulse selector. The main application of the selector is selection of single pulses or pulses with a given repetition frequency from the pulse train of the master oscillator most often operating at MHz frequency.

Compatibility with femtosecond Yb:lasers and picosecond Nd: lasers;
Built-in system of master oscillator protection from back radiation;
Does not require a separate cooling system: can be connected to the cooling system of FX200 / PX110 lasers;
One interface for controlling the selector and FX200 / PX110 lasers.

Send a request

/ Description

/ Specifications

/ Applications

FS100 pulse selector is a device designed to reduce the pulse repetition rate of femtosecond / picosecond lasers.

The selector consists of two blocks: an optical block and a high-voltage electronic control block. The optical block includes a Faraday isolator and a Pockels cell. The laser pulses are selected using a high-speed Pockels cell, and a Faraday isolator is used to protect your master oscillator (laser) from back radiation.

Central wavelength, nm	1030 nm or 1064 nm
Transmission, %	≥75
Output PRR adjusting range	1 Hz, 2Hz, 4Hz, … 1МHz (integer, multiple frequencies)
Single pulse mode	Available
Extraction of the Input radiation repetition rate	Available
Triggering	internal / external
Input triggering	optical / electronic
Cooling¹⁾	Water
Dimensions (L×W×H), mm	400 × 200 × 130
Control	USB, Windows 10,11 software
Laser requirements
PRR	2 МHz …100 МHz
Max allowed average power	10 W

* Specifications are subject to change without notice

1) FS100 can be connected to the cooling loop of FX200 or PX110 lasers without additional cooling system.

Reducing the repetition rate of fs or ps pulses;
Pulse injection and ejection systems in amplification systems;
Pulse repetition rate control;
Contrast enhancement systems;
Pump-probe spectroscopy.
