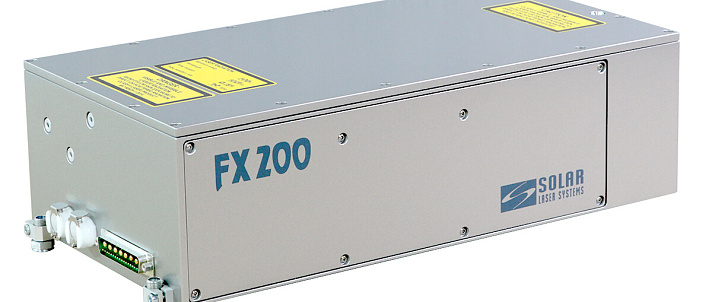

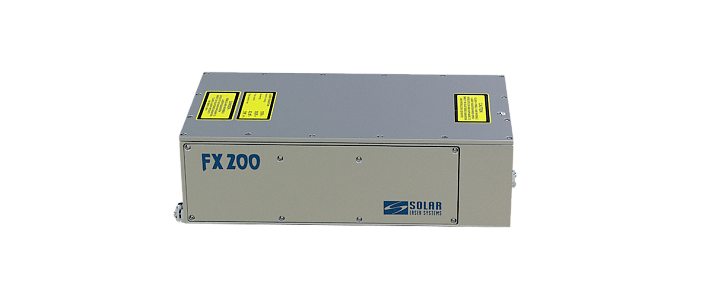

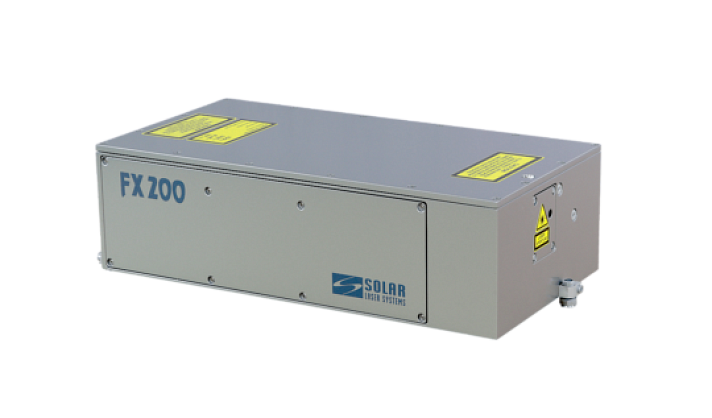

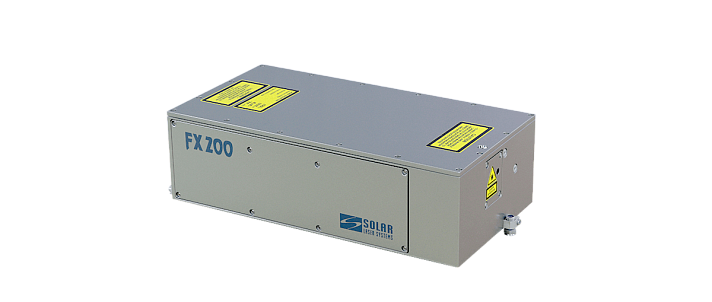

FX Femtosecond Lasers
FX is a series of solid-state femtosecond lasers with high average and pulse power, as well as excellent long-term stability of output parameters.
  • Air-cooled
  • Compact & dust proof design
  • Pulsewidth up to 120 fs
  • Long-term stability
  • SHG, THG, FHG available
  • Self-starting
Send a request
/ Description
/ Specifications
/ Options & Accessories
/ Applications

The active medium in FX lasers is pumped with the use of commercially available and reliable laser diodes, which sets them apart from the complex and expensive pumping schemes used in traditional Ti:Sapphire femtosecond systems. This is why FX lasers fully combine the compactness and reliability of fiber systems with the benefits of solid-state lasers.


The design of FX lasers guarantees their long-term and stable operation and virtually eliminates the need for maintenance service. The laser operates on a plug-and-play basis and can be operated by an operator without any experience in laser technology.


The unpretentiousness of FX lasers to operating conditions is due to a rigid and dust-proof housing with thermal stabilization of all critical components of the cavity. These design features, as well as a service interval of more than 10,000 hours, will be appreciated by industrial users.


The excellent quality of the laser beam will satisfy the most demanding requirements of scientists involved in ultra-precise experiments. And the technology used in SESAM@ lasers automatically ensures mode-locking with ideal long-term stability of radiation parameters, which guarantees the accuracy of your experiments.


For the applications requiring the use of visible or UV femtosecond radiation, the best choice is to supplement the laser with Second, Third or Fourth Harmonic Generators, which can be optionally supplied in addition to the laser you already have in your laboratory.

Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Model FX 200-5 FX 200-7
Wavelength/ nm 1) 1030 ± 5 1030 ± 5
Average power, W ≥ 5 ≥ 7
Pulse energy, nJ ≥ 70 ≥ 100
PRR, MHz 70 ± 5
Pulsewidth, fs ≤ 150 ≤ 150
Spectrum width, nm ≥ 8 ≥ 7
Beam quality TEM00; M2 ≤ 1,2
Long-term stability, % 2) ± 0,5
Cooling Water-air
Electrical service 100-240 V, 50/60 Hz, ≤ 600 W
Dimensions (L×W×H), mm
Laser head
Power supply


400х290х120
410х420х170


* Specifications are subject to change without notice

1) Second, third and fourth harmonics are available upon request.
2) Within 12 hours after warm-up under stable environmental conditions.

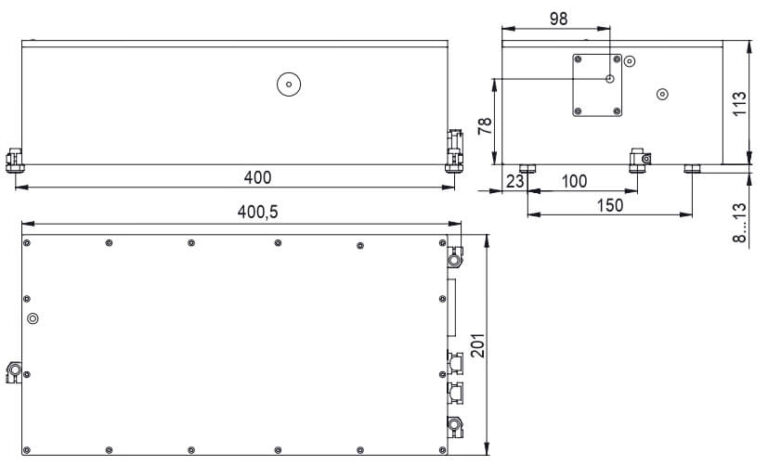

FX200 laser head outline drawing

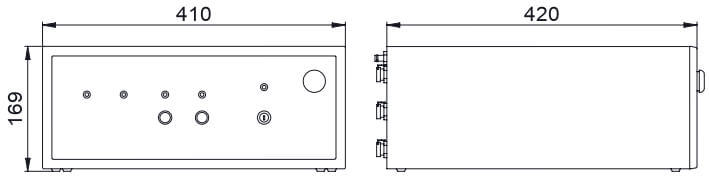

FX200 power supply outline drawing



  • External Harmonic Generators
  • External Attenuator
  • Frequency Divider
  • Pulse Selector

HARMONIC GENERATORS

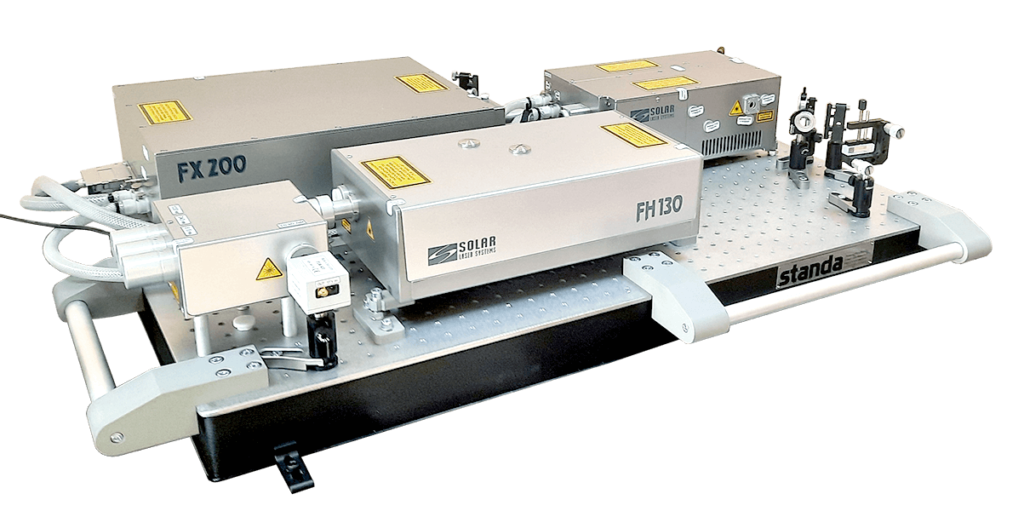

For the applications requiring the use of visible or UV femtosecond radiation, the best choice is to supplement the laser with Second (515 nm), Third (343 nm) or Fourth (258 nm) Harmonic Generators, which can be optionally supplied together with the new lasers. Harmonic generators can also be optionally supplied in addition to the lasers you already have in your laboratory.

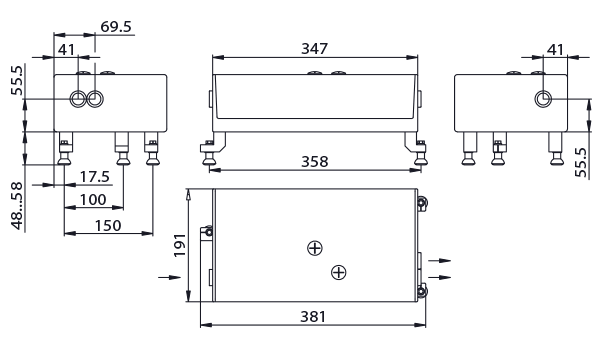

FH Harmonic Generator outline drawing
  • Femtosecond spectroscopy
  • Nonlinear spectroscopy
  • Nonlinear optics
  • Harmonics generation
  • Micromachining
