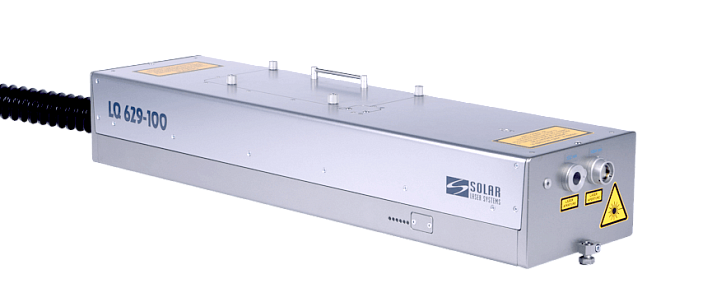

100 Hz high pulse energy Nd:YAG laser LQ629
The LQ629 laser demonstrates an unattainable for most of the models combination of high pulse energy, high pulse repetition rate and perfect beam quality.
  • 200 mJ output at 100 Hz
  • Homogeneous flat-top beam profile
  • Built-in VIS and UV harmonic generators
  • Flash lamp lifetime of > 109 pulses
  • Dustproof & rugged design
  • Small footprint
  • Turn-key operation
Send a request
/ Description
/ Specifications
/ Options & Accessories
/ Applications

The specific feature of the LQ629 is that the active elements of the master oscillator and amplifier are installed in one pump chamber and are pumped by a single flash lamp. The master oscillator is based on the time-proven ring cavity design ensuring excellent beam quality while the classical single-pass amplifier is supplemented with the optics compensating thermo-optical aberrations.


The optical design applied ensures almost ideal flat-top laser beam profile. Particularly, such a profile providing homogeneous exposure over the whole laser beam field is much-in-demand for most of applications starting from ablation and finishing with optical pumping.


Innovative and thoroughly verified optical configuration of the LQ629 laser is arranged in one compact vibration- and dustproof housing which ideally suits for the roughest operating conditions.


Technical solutions developed specially for this laser provide not only excellent combination of output parameters in a cost-effective design but also minimize your expenses on servicing this first-class device. Low maintenance costs are ensured by utilization of one flashlamp with an increased (more than 100 million pulses) lifetime as well as its easy and quick replacement without access to the laser head optical cavity.

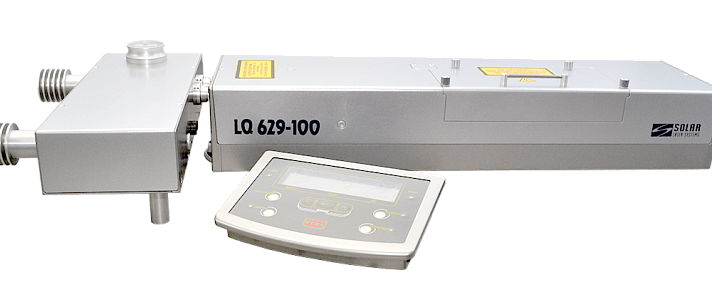

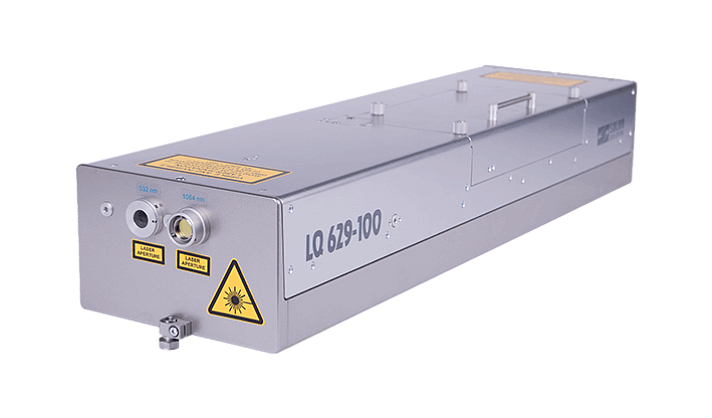

Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1

Download Specification


Model LQ629
PRR, Hz 1) 100
Pulse energy, mJ на 1064 nm 200
на 532 nm 100
на 355 nm 50
на 266 nm 15
на 213 nm 2) 5
Beam dia3), mm 12
Pulsewidth, nm (FWHM), ns 3) < 5
Divergence 3), mrad ≤ 1,5
Pulse energy stability (RMS) , % 3) ≤ 1,5
Jitter, ns4) ≤ 4
Cooling Water-air
Electrical service 200…240 V, 50/60 Hz, < 1200 W
Dimensions (L×W×H), mm Laser head 715 x 180 x 125
Power supply 620 x 330 x 670


* Specifications are subject to change without notice.

  • You can choose any PRR from 1Hz to 100Hz when placing an order. All the parameters are specified for 100 Hz.
  • With external harmonic generator.
  • Specified at 1064 nm.


With respect to QSW IN pulse.

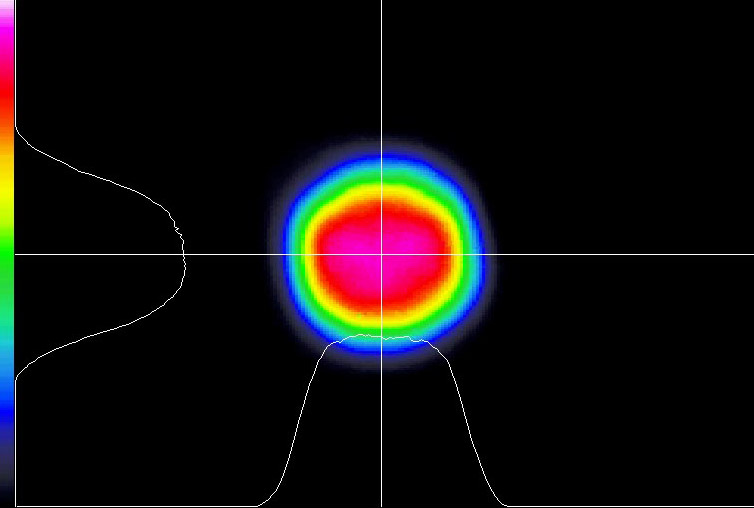

LQ629 laser typical near field beam profile.

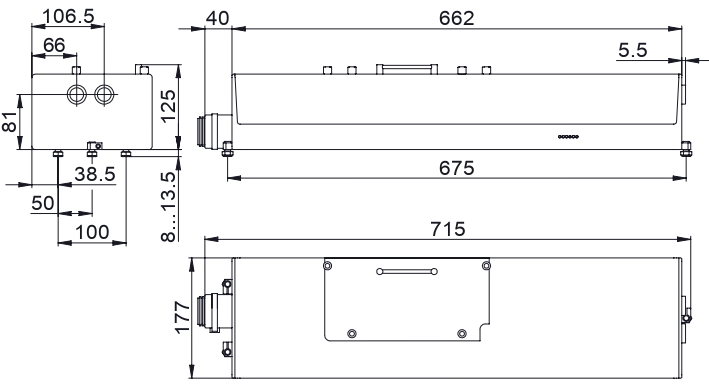

Q629 laser head outline drawing.

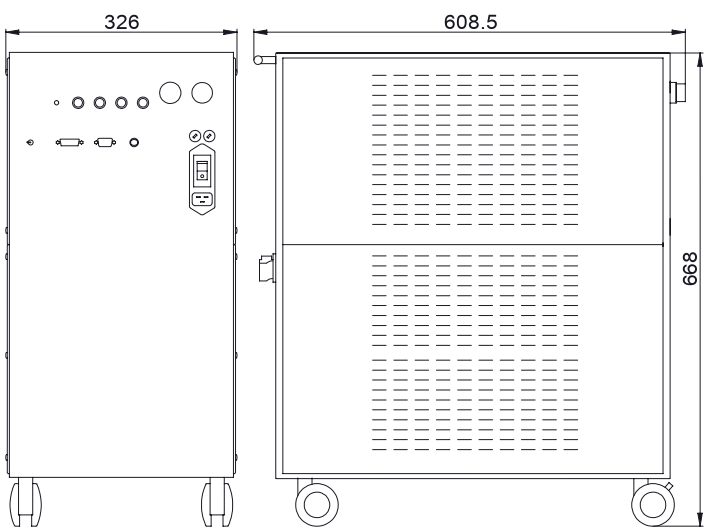

LQ629 power supply outline drawing.

HARMONIC GENERATORS


In the standard configuration the LQ629  laser has built-in SHG, THG and FHG. However, upon your request the harmonic generators can be supplied as external stand-alone modules. FiHG  is available only as an external unit.

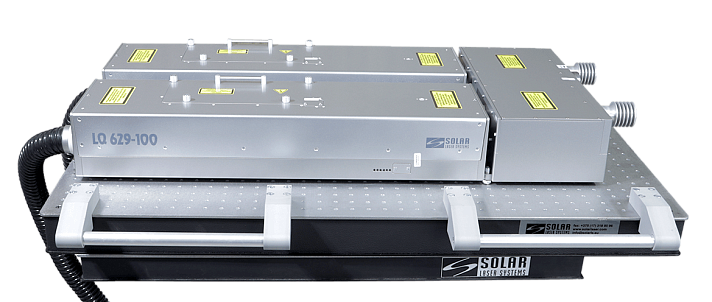

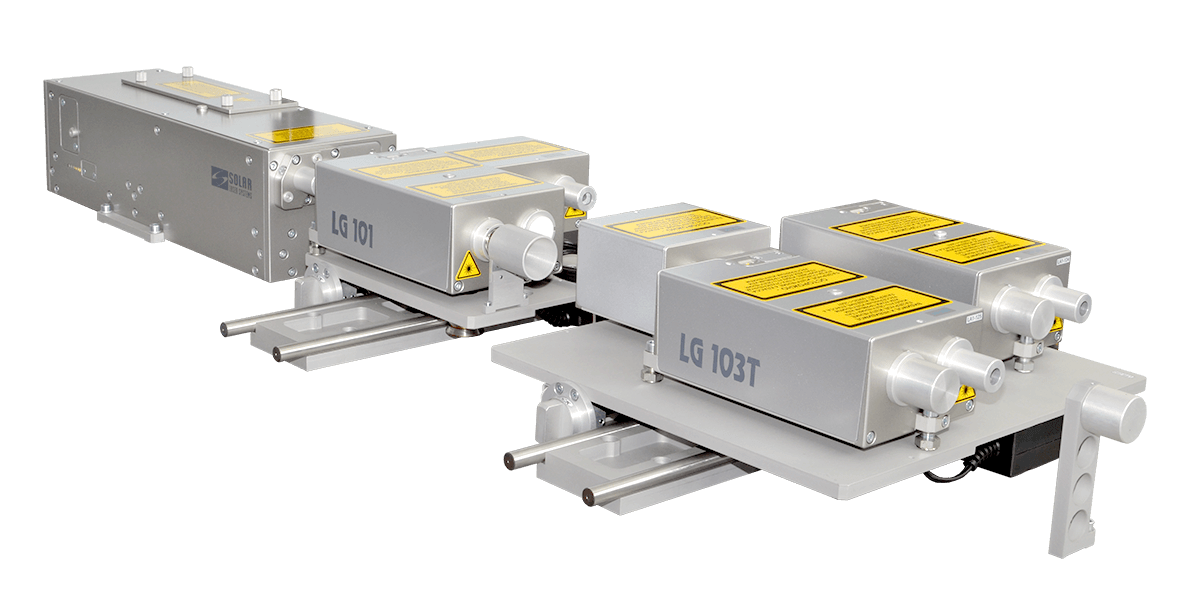

Nd:YAG laser system with external harmonic generators


OPO


Upon your request the LQ629  laser can be supplemented with an optical parametric oscillator of the LP600 series. In such a combination you will have a source of continuously tuneable laser radiation within a wide spectral range (from UV to IR).

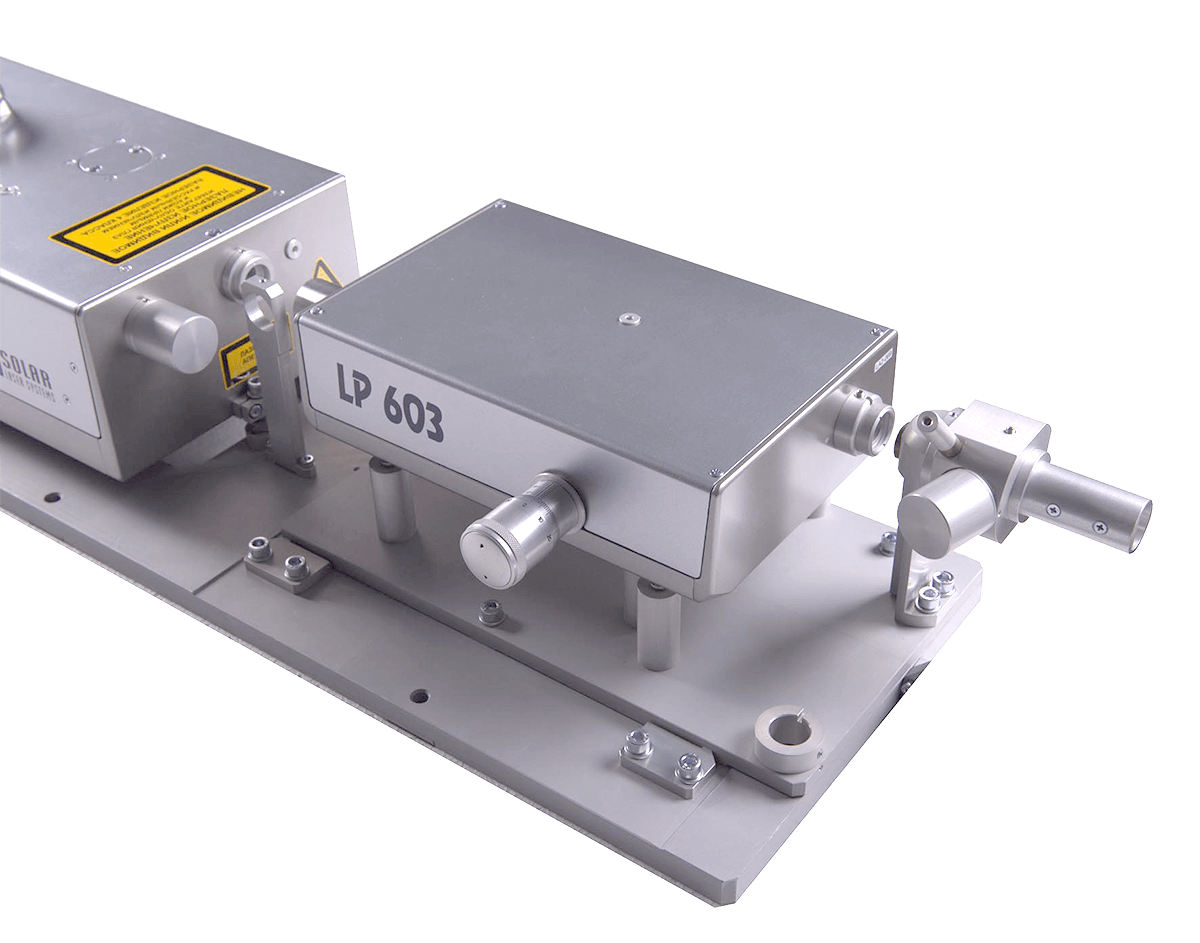

Nd:YAG laser system with OPO


ATTENUATOR


The laser can be supplemented with a PC controlled attenuator. Upon your choice it can be either a unit optimised for operation at one wavelength or an achromatic attenuator intended for simultaneous attenuation of all the laser harmonics from 266 nm to 1064 nm.




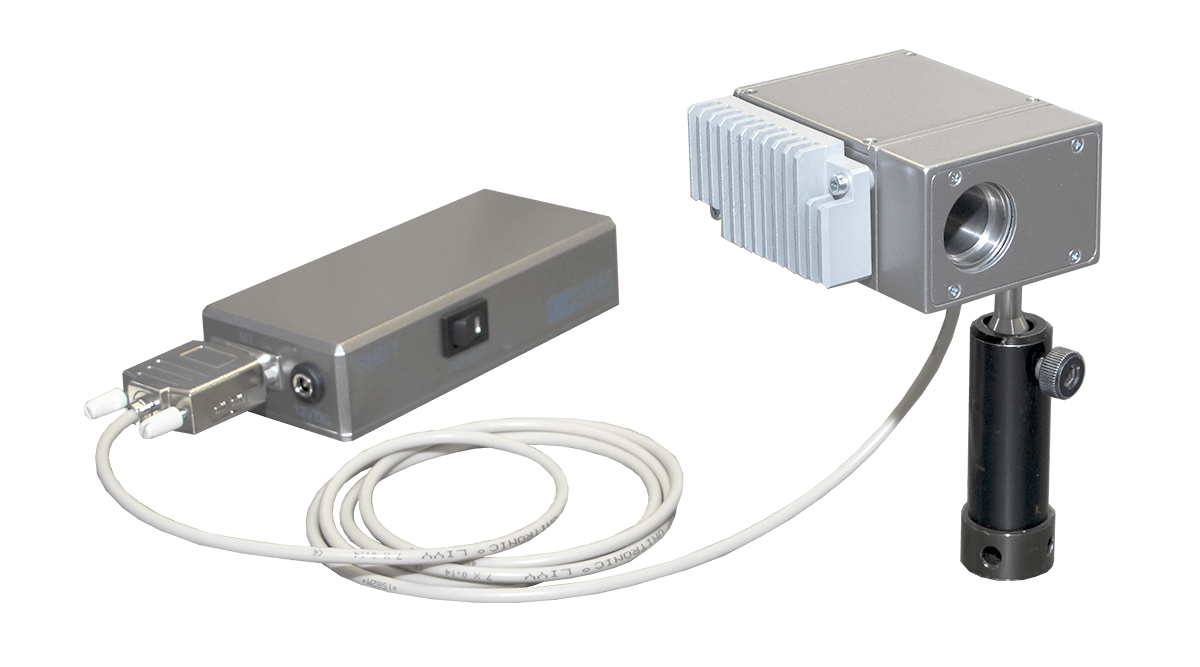

High power laser beam attenuator


ARTICULATED ARM


A number of applications require quick and flexible laser beam delivery to the research object or the place of measurements. For this an optical fiber can be used but only for delivery of low pulse energy radiation (5-20 mJ). To deliver high-power radiation we offer to supplement the laser with a mirror articulated arm. To minimise losses of laser pulse energy we use special dielectric mirrors with high reflection coefficient simultaneously for 1064 nm and 532 nm.


  • Ti:Sapphire Lasers and OPO Pumping
  • Dye Lasers Pumping
  • Spectroscopy
  • LIDAR
  • LIF (Laser Induced Fluorescence)
  • LIBS (Laser Induced Breakdown Spectroscopy)
  • Education
  • PIV (Particle Image Velocimetry)
  • Range-Finding
  • Ablation
  • Marking
  • Laser cleaning
  • Laser drilling
  • TFT-LCD Repair
