Compact Nd:YAG lasers LQ529
The LQ529 is a series of popular compact lamp-pumped Nd:YAG lasers offering uncompromising combination of the main parameters: high output power, exceptional beam quality and minimum laser head and power supply dimensions.
  • High PRR
  • High pulse energy up to 0.5 J
  • Excellent beam quality
  • All harmonics available up to 213 nm
  • Compact single-phase power supply
  • No external water requirements
Send a request
/ Description
/ Specifications
/ Options & Accessories
/ Applications

All the lasers of the LQ529 series are based on ring cavity and incorporate a pump chamber with diffuse ceramic reflector. Due to this technical solution the LQ529 lasers, unlike the lasers with traditional linear cavity, provide homogeneous close to flat-top laser beam profile and possess exceptional stability of output energy and spatial radiation parameters. Beam pointing stability of the LQ529 is better than 20 µrad in the vertical plane and 80 µrad in the horizontal plane.


All the critical components of the laser are thermally stabilised which in combination with vibration-proof design ensures unsurpassed long-term output radiation stability. The efficient thermostats used in the LQ529 ensure warm-up time of less than 10 min.


To reduce your time expenses on routine service of the LQ529 we provided flash lamp life time of more than 30 million pulses and foreseen easy and quick procedure of its replacement.


Closed-loop water-to-air cooling system is integrated into a compact single-phase laser power supply which can be controlled both from PC and via the remote control unit.




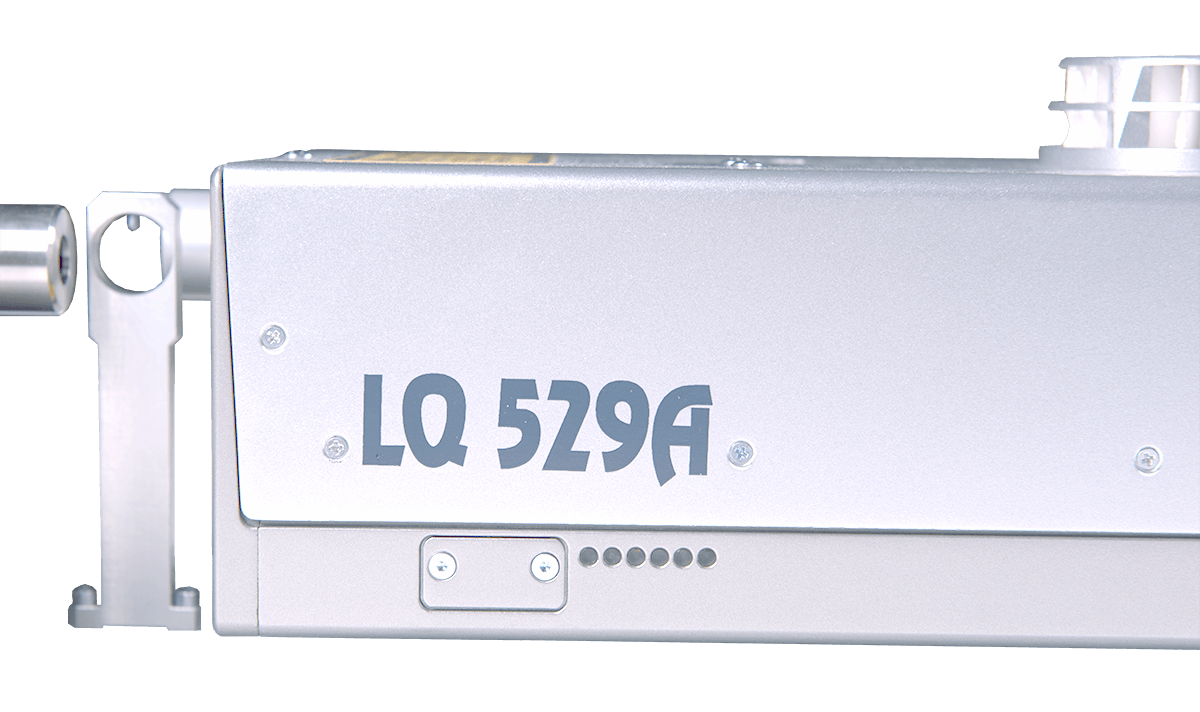

Pulsed Nd:YAG Laser Model LQ529

Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1
Slide 1

Download Specification


Model LQ529B LQ529A
PRR, Hz 10 20 30 5 10
Pulse energy, mJ на 1064 nm 350 350 280 500 500
на 532 nm 190 190 140 280 280
на 355 nm 100 100 60 130 130
на 266 nm 60 40 25 85 70
на 213 nm 1) 18 15 8 25 20
Beam dia2), mm < 6 < 8
Pulsewidth, nm (FWHM), ns 2) 8-12
Divergence 2), mrad ≤ 1,5
Pulse energy stability (RMS) , % 2) ≤ 1
Jitter (StdDev) , ns3) ≤ 1
Cooling Water-air
Electrical service 200…240 V, 50/60 Hz, < 1000 W
Dimensions (L×W×H), mm
Laser head
Power supply

615 x 180 x 120

620 x 330 x 670


* Specifications are subject to change without notice.

1) With external harmonic generator.

2) Specified at 1064 nm.
3) With respect to QSW IN pulse.

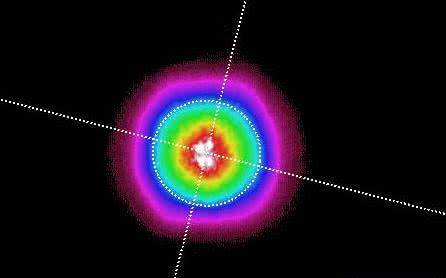

Typical beam profiles at 532 nm and 355 nm. Near field

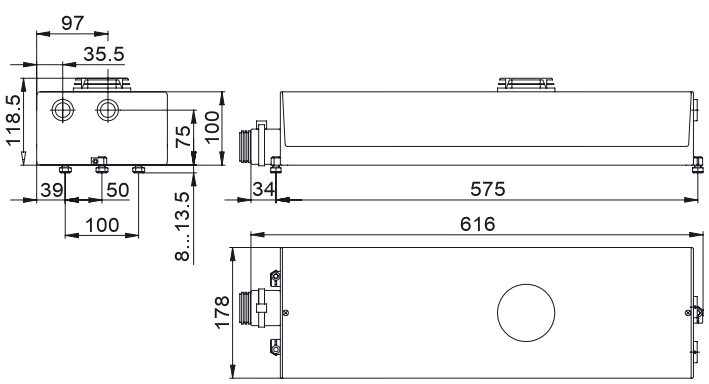

LQ529 laser head outline drawing.

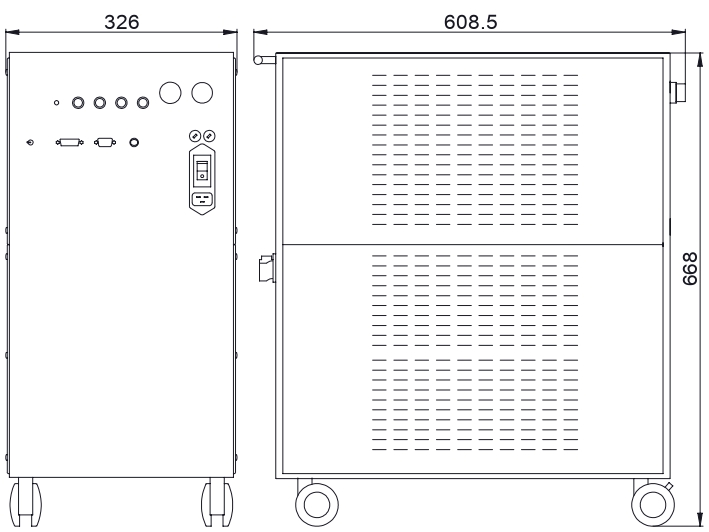

LQ529 power supply outline drawing.

HARMONIC GENERATORS


In the standard configuration the LQ529  laser has built-in SHG, THG and FHG. However, upon your request the harmonic generators can be supplied as external stand-alone modules. FiHG  is available only as an external unit.




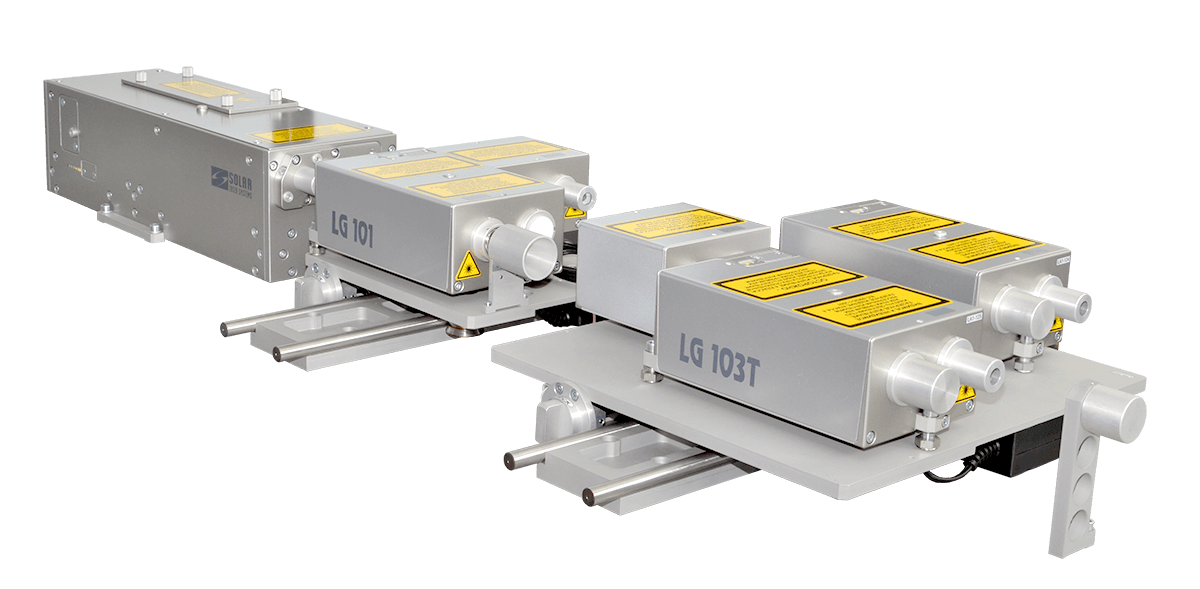

Nd:YAG laser system with external harmonic generators


OPO


Upon your request the LQ529  laser can be supplemented with an optical parametric oscillator of the LP600 series. In such a combination you will have a source of continuously tuneable laser radiation within a wide spectral range (from UV to IR).




Nd:YAG laser system with OPO


ATTENUATOR


The laser can be supplemented with a PC controlled attenuator. Upon your choice it can be either a unit optimised for operation at one wavelength or an achromatic attenuator intended for simultaneous attenuation of all the laser harmonics from 266 nm to 1064 nm.




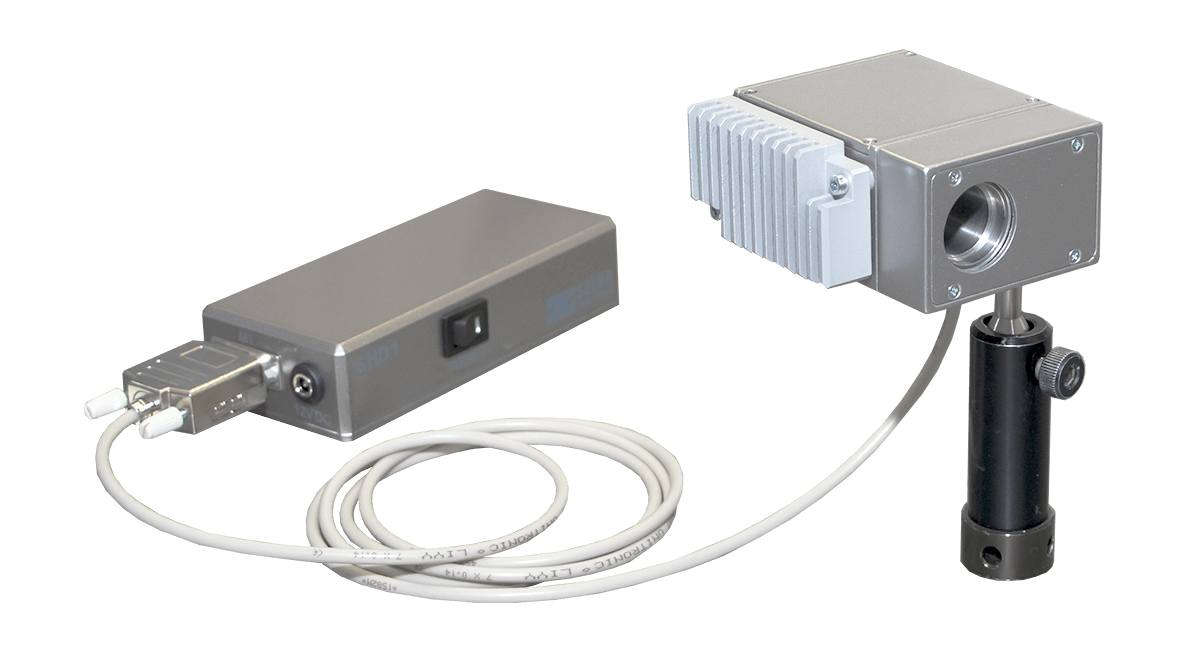

High power laser beam attenuator


ARTICULATED ARM


A number of applications require quick and flexible laser beam delivery to the research object or the place of measurements. For this an optical fiber can be used but only for delivery of low pulse energy radiation (5-20 mJ). To deliver high-power radiation we offer to supplement the laser with a mirror articulated arm. To minimise losses of laser pulse energy we use special dielectric mirrors with high reflection coefficient simultaneously for 1064 nm and 532 nm.



  • Ti:Sapphire Lasers and OPO Pumping
  • Dye Lasers Pumping
  • Spectroscopy
  • LIDAR
  • LIF (Laser Induced Fluorescence)
  • LIBS (Laser Induced Breakdown Spectroscopy)
  • Education
  • PIV (Particle Image Velocimetry)
  • Range-Finding
  • Ablation
  • Marking
  • Laser cleaning
  • Laser drilling
  • TFT-LCD Repair
