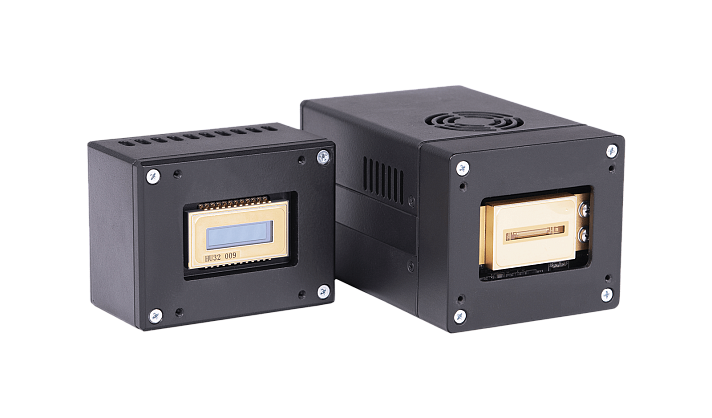

Detectors from SolarLS
Solar Laser Systems offers a line of spectroscopic multi-channel detectors for monochromators and spectrographs (listed in the tables below or other upon the prior agreement with the manufacturer). Detectors providing data transfer via Full-Speed USB interface (up to 12 Mbit/sec) are powered via the USB port from a PC. Powering of cooled detectors is provided from an external power supply. Power consumption is <6W for non-cooled detectors and <25W for cooled detectors. The thermostabilization system with a built-in Peltier-cooler ensures crystal temperature precision of ±0.1ºC.
/ Description
/ Specifications
Solar Laser Systems offers a line of spectroscopic multi-channel detectors for monochromators and spectrographs (listed in the tables below or other upon the prior agreement with the manufacturer). Detectors providing data transfer via Full-Speed USB interface (up to 12 Mbit/sec) are powered via the USB port from a PC. Powering of cooled detectors is provided from an external power supply. Power consumption is <6W for non-cooled detectors and <25W for cooled detectors. The thermostabilization system with a built-in Peltier-cooler ensures crystal temperature precision of ±0.1ºC.


Solar Laser Systems offers to equip monochromators and spectrographs with new generation photomultipliers series H11890 manufactured by Hamamatsu.


H11890 is a photon counter, in a single metal case containing a photomultiplier, a high-voltage power supply, a voltage divider circuit, a photon counting circuit and a USB interface. The photon counter is fully compatible with the software of spectrographs and monochromators produced by SOLAR Laser Systems.


The H11890 series is available in 3 versions with three different photomultipliers, which makes it possible to use the detector for a variety of applications. The photon counting scheme is characterized by high linearity of counting and low noise.

Slide 1
Slide 1

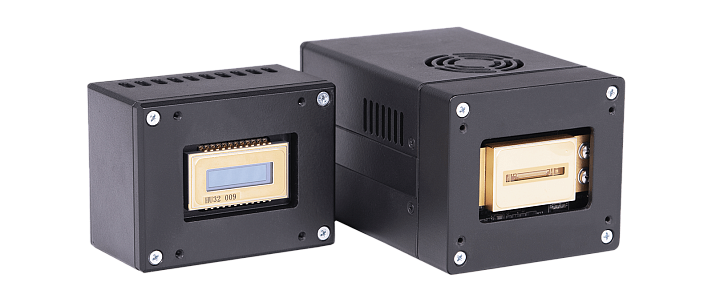

MULTICHANNEL DETECTORS


Parameters of sync pulses
polarity positive
amplitude 3-5V
FWHM pulse duration ~10μs



Requirements to external sync pulse:
polarity positive
amplitude 3-15V
FWHM pulse duration 5-20μs
Rise time ~10μs



Model U2C-14T3UV U2C-14T2UV U2C-14H13496 U2C-14H11639 U2C-14S751
Sensor type TCD1304 Toshiba TCD1205 Toshiba S13496 Hamamatsu S11639-01 Hamamatsu ILX751B Sony
Number of pixels 3648 2048 4096 2048 2048
Pixel size, μm2 8 x 200 14 x 200 7 x 200 14 x 200 14 x 14
Active area, mm 29.184 28.672 28.672 28.672 28.672
Spectral response range, nm 200 — 1100 200 — 1100 200-1000 200-1000 400-100
Photo sensitivity, V/lx.s 160 80 650 1300
Peak sensitivity wavelength, nm 540 580 700 700 560
Photo response non-uniformity, (1)% ±5 ±5 ±2 ±2 ±4
Anti-blooming (2) No Yes Yes Yes No
ADC Resolution 16 16 16 16 14
Readout noise, ADC count, rms (at minimal exposure time) < 8 < 14 < 4 < 4 6
Data rate (max), kHz 1000 1000 5000 5000 5000
Dynamical range 2000:1 1100:1 5000:1 5000:1 2700:1
Frame readout time (min), ms 7.4 4.2 0,414 0,209 0.42
Exposure time (min), msec 7.4 4.2 0.018 0.018 0,0004
Exposure time (max) not less, (3) s 3 4 90 90 2
Electronic shutter As an options no no no Yes
Cooling temperature, 0C Non-cooled Non-cooled Non-cooled Non-cooled Non-cooled
Operation temperature, 0C 10 — 30 10 — 30 10 — 30 10 — 30 10 — 30
Computer interface High-Speed USB High-Speed USB High-Speed USB High-Speed USB High-Speed USB
Synchronization IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT
Size, mm3 66 x 86 x 32 66 x 86 x 32 66 x 86 x 32 66 x 86 x 32 66 x 86 x 32


(1) Signal level is 50% of saturation.

(2) Anti-blooming: the ability to prevent the spilling of excess photocharges from a saturated photoelement to neighboring elements.

(3) Max exposure time is a time for which dark signal reaches 25% of the dynamic range.



Model U2C-16H9202S U2C-16H9204S U2C-16H9212 U2C–16H9214 U2C–16H9204D U2C-16H9208
Sensor type G9202–512S G9204–512S G9212–512S G9214–512S G9204-512D G9208-256W
Number of pixels 512 512 512 512 512 256
Defective pixels (1) No No ≤5 ≤5 No ≤13
Pixel size, μm2 25 x 250 25 x 500 25 x 250 25 x 500 25 x500 50×250
Active area, mm 12.8 12.8 12.8 12.8 12.8 12.8
Spectral response range, μm 0.9 – 1.67 0.9 – 1.67 0.9 – 1.67 0.9 – 1.67 0.9 – 1.7 0.9-2.6
Peak sensitivity wavelength, μm 1.55 1.55 1.55 1.55 1.55 2.3
Photo response non-uniformity,%(2)(5) ±5 ±5 ±5 ±5 ±5 ±10
Anti-blooming (3) Yes Yes Yes Yes Yes Yes
ADC Resolution 16 16 16 16 16 16
Readout noise. ADC count, rms(5) <4 <4 <4 <4 <4 <4
Data rate (max), kHz 125 125 125 125 125 125
Frame readout time (min), ms 4.1 4.1 4.1 4.1 4.1 2.05
Exposure time (min), µs 12 12 12 12 12 8
Exposure time (max) not less, (4) (5) s 60 60 60 60 2 3.5ms
Cooling temperature, 0C –10 – 10 – 10 – 10 Non cooled — 20
Operation temperature, 0C 10 – 30 10 – 30 10 – 30 10 – 30 10 – 30 10-30
Computer interface High Speed USB High Speed USB High Speed USB High Speed USB High Speed USB High Speed USB
Synchronization IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT
Size, mm3 70 x 80 x 122 70 x 80 x 122 70 x 80 x 122 70 x 80 x 122 66 x 86 x 32 70 x 80 x 122


(1) Total number of pixels with dark current. sensitivity nonlinearity and readout noise exceeding maximum value. The first and last pixels are not counted.

(2) Signal level is 50% of saturation. Exposure time is 10ms.

(3) Anti-blooming: the ability to prevent the spilling of excess photocharges from a saturated photoelement to neighboring elements.

(4) Max exposure time is time when dark signal reaches 25% of the dynamic range

(5) All image sensors provide two operational modes: high dynamic or high sensitivity. Parameters in the above table are indicated for the high dynamic mode.



Model U2C-16H7306 U2C-16H7307 U2C–16H7316 U2C–16H7317 U2C–16H7318
Sensor type S7030-1006 S7030-1007 S7031–1006 S7031–1007 S7031–1008
Number of pixels 1024 x 64 1024 x 128 1024 x 64 1024 x 128 1024 x 256
Number of active pixels 1024 x 58 1024 x 122 1024 x 58 1024 x 122 1024 x 250
Pixel size, μm2 24 x 24 24 x 24 24 x 24 24 x 24 24 x 24
Active area, mm2 24.6 x 1.4 24.6 x 2.9 24.6 x 1.4 24.6 x 2.9 24.6 x 6.0
Spectral response range, nm 200 — 1100 200 — 1100 200 — 1100 200 — 1100 200 — 1100
Peak sensitivity wavelength, nm 650 650 650 650 650
Quantum efficiency at peak sensitivity, % >90 >90 >90 >90 >90
Photo response non-uniformity,(1) % ±3 ±3 ±3 ±3 ±3
Anti-blooming (2) No No No No No
ADC Resolution 16 16 16 16 16
Readout noise, ADC count, rms <2 <2 <2 <2 <2
Data rate (max), kHz 125 125 125 125 125
Frame readout time (min) @ area scanning mode, s 0.54 1.07 0.54 1.07 2.14
Frame readout time @ line binning mode (min), ms 9.12 9.89 9.12 9.89 11.42
Exposure time (min), ms 8.2 8.2 8.2 8.2 8.2
Exposure time (max) not less, (3) s 2 2 160 160 160
Cooling temperature, 0C Non-cooled Non-cooled -10 -10 -10
Operation temperature, 0C 10÷30 10÷30 10÷30 10÷30 10÷30
Computer interface High Speed USB High Speed USB High Speed USB High Speed USB High Speed USB
Synchronization IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT
Size, mm3 66 x 86 x 47 66 x 86 x 47 70 x 80 x 121 70 x 80 x 121 70 x 80 x 121


(1) Signal level is 50% of saturation. Exposure time is 10ms.

(2) Anti-blooming: the ability to prevent the spilling of excess photocharges from a saturated photoelement to neighboring elements.

(3) Max exposure time is time when dark signal reaches 25% of the dynamic range



Model U2C-16H10426 U2C-16H11516 U2C-16H11850 U2C-16H101409 U2C-16H101419
Sensor type S10420-1106-01 Hamamatsu S11510-1106 Hamamatsu S11850 Hamamatsu S10140-1109 Hamamatsu S10141-1109 Hamamatsu
Number of pixels 2068 x 70 2068 x 70 2068 x 70 2068 x 512 2068 x 512
Number of active pixels 2048 x 64 2048 x 64 2048 x 64 2048 x 512 2048 x 512
Pixel size, μm2 14 x 14 14 x 14 14 x 14 12×12 12×12
Active area, mm2 28.672 x 0.896 28.672 x 0.896 28.672 x 0.896 24.576 x 6.072 24.576 x 6.072
Spectral response range, nm 200-1100 200-1100 200-1100 200-1200 200-1200
Peak sensitivity wavelength, nm 500 700 600 640 640
Quantum efficiency at peak sensitivity, % >75 >75 >75 >90 >90
Photo response non-uniformity,(1) % ±3 ±3 ±3 ±3 ±3
Anti-blooming (2) yes yes yes no no
ADC Resolution 16 16 16 16 16
Readout noise, ADC count, rms <4 <4 <4 <5 <5
Data rate (max), kHz 250 250 250 250 250
Frame readout time (min) @ area scanning mode, s 0.58 0.58 0.58 4.202 4.202
Frame readout time @ line binning mode (min), ms 9.39 9.39 9.39 16.46 16.46
Exposure time (min), ms 8.272 8.272 8.272 8.272 8.272
Exposure time (max) not less, (3) s 5 5 40 2 60
Cooling temperature, 0C Non-cooled Non-cooled 5 Non-cooled -10
Operation temperature, 0C 10÷30 10÷30 10÷30 10÷30 10÷30
Computer interface High Speed USB High Speed USB High Speed USB High Speed USB High Speed USB
Synchronization IN/OUT IN/OUT IN/OUT IN/OUT IN/OUT
Size, mm3 70 x 80 x 143 70 x 80 x 143 70 x 80 x 120 66 x 86 x 46 70 x 80 x 121


(1) Signal level is 50% of saturation.

(2) Anti-blooming: the ability to prevent the spilling of excess photocharges from a saturated photoelement to neighboring elements.

(3) Max exposure time is time when dark signal reaches 10% of the dynamic range



Multichannel CCD detectors by ANDOR Technology TM The unique vacuum technology UltravacTM; deep thermoelectric cooling (down to -100°C)
iVac Series, Spectroscopic CCD DR 324B-FI model, front-illuminated CCD sensor, UltraVacTM thermo-electric cooling down to -60°C, spectral range 400-1000nm, 1650õ200pixels, pixel size 16×16µm, image area 26.4mm x 3.2mm, 16 bits digitization
iDus Series, Spectroscopic CCD DV 401A-BV model, back-illuminated CCD sensor, UltraVacTM thermo-electric cooling down to -70°C, spectral range 200-1100nm, 1024x127pixels, pixel size 26×26µm, image area 26.6mm x 3.6mm, 16 bits digitization
DU 401A-BV model, back-illuminated CCD sensor, UltraVacTM thermo-electric cooling down to -100°C, spectral range 200-1100nm, 1024x127pixels, pixel size 26×26µm, image area 26.6mm x 3.6mm, 16 bits digitization.
Newton Series, EMCCD DU970P-FI model (*), front-illuminated EMCCD sensor, UltraVacTM thermo-electric cooling down to -100°C, spectral range 400-1000nm, 1600x200pixels, pixel size 16×16µm, dual output amplifier, crop mode, Variable readout speed up to 3MHz, 16 bits digitization.
DU970P-BV model (*), back-illuminated EMCCD sensor, UltraVacTM thermo-electric cooling down to -100°C, spectral range 200-1000nm, 1600x200pixels, pixel size 16×16µm, dual output amplifier, crop mode, Variable readout speed up to 3MHz, 16 bits digitization
iStar Series, Gated iCCD DH320T-25U-03 model (*), Ultra Fast Gated Intensified CCD Camera, spectral range 200-900nm, 124×256 CCD 100% Fill Factor, 25mm tube, Gen2 Multialkali S20 Photocathode, P43 phosphor Multi-Mhz Readout Speeds, Integrated Digital Delay Generator, 3 ns Crop Mode sensor, Photocathode dry gas purge port, USB data interface.

(*) other models are supplied upon request.



PHOTOMULTIPLIERS


MODEL H11890-110 H11890-210 H11890-01
Input Voltage USB-powered
Max. Input Current, mA 50
Effective Area, mm Ø8
Peak Sensitivity Wavelength, nm 400
Spectral Response Range, nm 230-700 230-700 230-870
Count Sensitivity, s-1*pW-1 300 nm 3.7 х 105 3.9 х 105 2.7 х 105
400 nm 4.9 х 105 6.1 х 105 3.6 х 105
500 nm 3.7 х 105 4.6 х 105 2.8 х 105
600 nm 1.1 х 105 1.3 х 105 2.0 х 105
700 nm 7.7 х 104 9.1 х 104 1.2 х 104
800 nm – – 3.0 х 104
Count Linearity, s -1 5.0 х 106
2.0 х 107
Dark Count, s -1 Typical 50 50 600
Max. 100 100 1000
Counter Gate Time, ms 1-10000
Interface USB 2.0
Operating Ambient Temperature, °С 5-40
