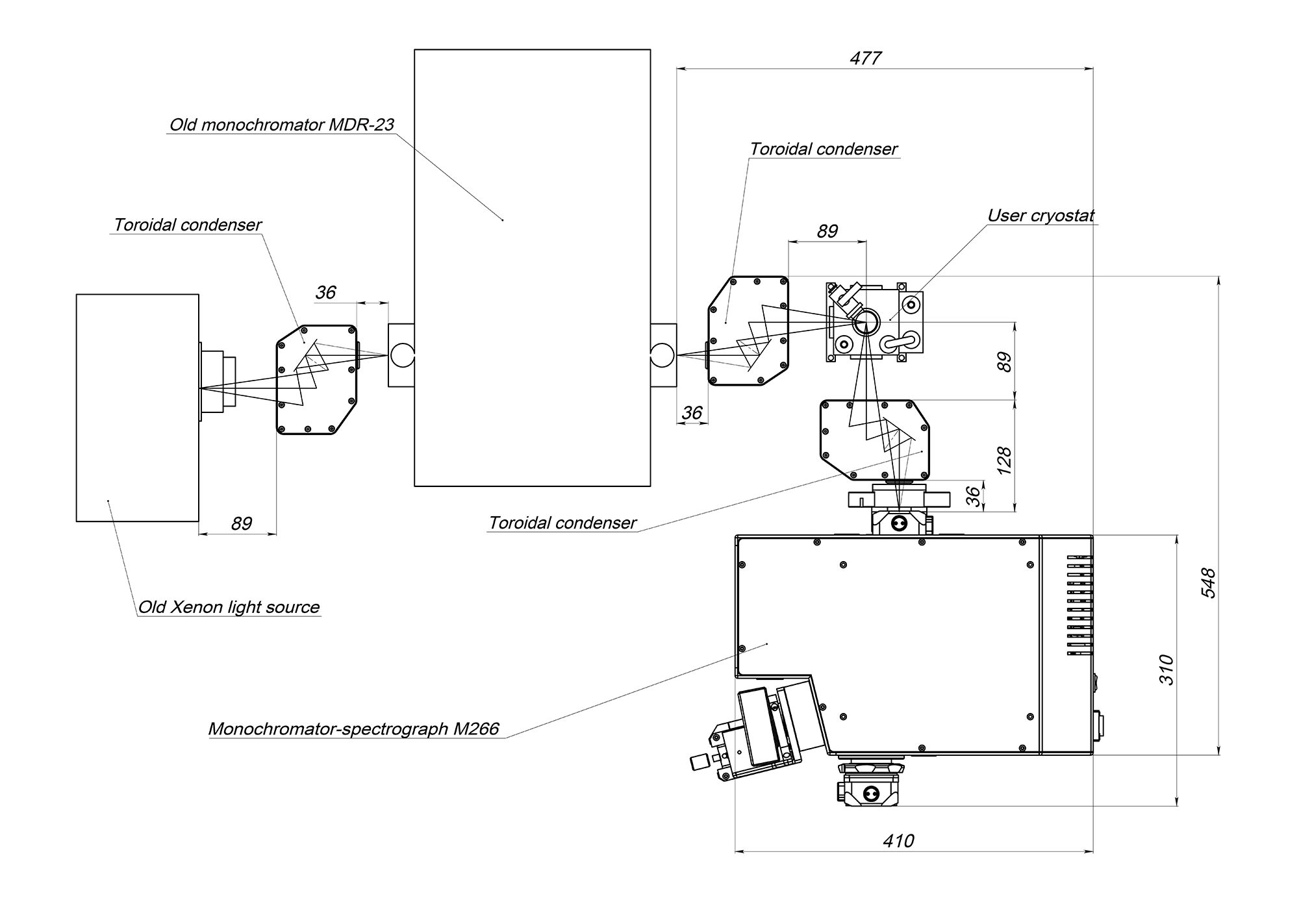

The TR series achromatic aspherical mirror condensers are multifunctional units that can be used:

— to focus a point light source on the entrance slit of the excitation monochromator,

— to focus the exciting light on the sample,

— to collect light from the sample and focus it onto the emission monochromator,

— to couple the emission monochromator with large area detectors.

The use of aberration-free aspherical reflective optics allows you to optimize the luminosity of your system in the widest spectral range. TR condensers completely eliminate the losses typical for lens and fiber systems.

• Coating Al + MgF2 (other coating available upon request)
• Spectral range 190-5000 nm
• Front focal distance – 46 mm
• Back focal distance – 61 mm
